Description

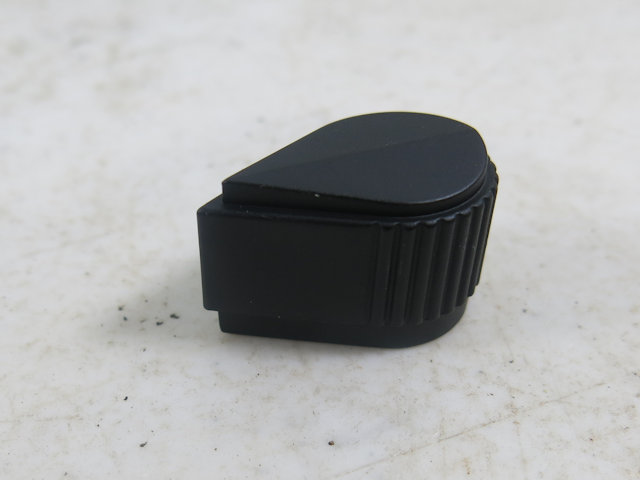

Knob assembly
MS91528-1K2B
NSN 5355-00-556-0145
NEW
Free shipping
| AARX | INSIDE DIAMETER | 0.252 INCHES MINIMUM AND 0.254 INCHES MAXIMUM |
| AAWY | COUNTERBORE DIAMETER | 0.485 INCHES MINIMUM |
| AAWZ | COUNTERBORE DEPTH | 0.188 INCHES MINIMUM |
| ABFR | SETSCREW HOLE QUANTITY | 2 |
| ABFU | DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.369 INCHES MAXIMUM |
| ABFY | OVERALL DEPTH | 0.568 INCHES MINIMUM |
| ABGL | WIDTH | 0.690 INCHES MINIMUM AND 0.730 INCHES MAXIMUM |
| ABHG | GRIPPING SURFACE CONDITION | GRIP AID |
| ABHH | SHAFT ACCOMMODATION STYLE | E18 COUNTERBORED |
| ABRY | LENGTH | 1.020 INCHES MINIMUM AND 1.070 INCHES MAXIMUM |
| ABSL | SKIRT STYLE | F2 STEPPED |
| ABSR | POINTER OVERALL LENGTH | 1.020 INCHES MINIMUM AND 1.070 INCHES MAXIMUM |
| ABSS | DISTANCE TO POINTER END | 0.675 INCHES MINIMUM AND 0.705 INCHES MAXIMUM |
| ABSX | ATTACHMENT METHOD | SETSCREWS |
| ADUM | OVERALL THICKNESS | 0.752 INCHES MINIMUM AND 0.812 INCHES MAXIMUM |
| AGAV | END ITEM IDENTIFICATION | SUPPORT EQUIPMENT, B-1 AIRCRAFT,FIRE CONTROL SYSTEM, MISSILE MK 74 (FCS),COMMUNICATIONS TERMINAL, SATELLITE AN/GSC-39(V)1,AIRBORNE MOBILE DIR AIR SPTCTL (2ID),(02M JUL83)(AN/UYQ-3A),FIRE CONTROL SYSTEM,MK 92 (FCS),AIRCRAFT, |
| AJQE | MATERIAL TRANSPARENCY | OPAQUE |
| CBSC | SCREW DRIVE TYPE | HEXAGON SOCKET |
| CMLP | THREAD QUANTITY PER INCH | 40 SCREW HOLE |
| CQJX | NOMINAL THREAD SIZE | 0.112 INCHES SCREW HOLE |
| CRPJ | SKIRT OUTSIDE DIAMETER | 1.000 INCHES MAXIMUM |
| CRWX | SKIRT DESIGN | NONDETACHABLE |
| CSKT | POINTER DESIGN | NONDETACHABLE |
| HUES | COLOR | BLACK, LUSTERLESS |
| SFTT | SURFACE TREATMENT | ANODIZE |
| SFTT | SURFACE TREATMENT | PASSIVATE |
| STYL | STYLE DESIGNATOR | A22 POINTER |
| THSD | THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
