Description

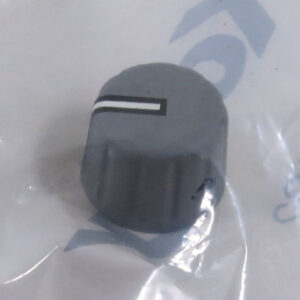

Knob assembly
Lockheed/Korry BP247-101
NSN 5355-01-066-4796
Used on the F-16 series aircraft
NEW
Free Shipping on this item
| INSIDE DIAMETER | 0.253 INCHES NOMINAL | |
| COUNTERBORE DIAMETER | 0.380 INCHES NOMINAL | |
| COUNTERBORE DEPTH | 0.160 INCHES NOMINAL | |
| SETSCREW HOLE QUANTITY | 2 | |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.310 INCHES NOMINAL | |
| OVERALL DEPTH | 0.560 INCHES NOMINAL | |
| GRIPPING SURFACE CONDITION | GRIP AID | |
| SHAFT ACCOMMODATION STYLE | E18 COUNTERBORED | |
| OUTSIDE DIAMETER | 1.000 INCHES NOMINAL | |
| SKIRT STYLE | F1 FLARED | |
| REFERENCE MARKING | LINE | |
| SURFACE LUSTER | GLOSS | |
| ATTACHMENT METHOD | SETSCREWS | |
| OVERALL THICKNESS | 0.620 INCHES NOMINAL | |
| THREAD QUANTITY PER INCH | 32 SCREW HOLE | |
| NOMINAL THREAD SIZE | 0.164 INCHES SCREW HOLE | |
| SKIRT OUTSIDE DIAMETER | 1.000 INCHES NOMINAL | |
| SKIRT DESIGN | NONDETACHABLE | |
| STYLE DESIGNATOR | A8 ROUND WITH SINGLE POINTED BAR FACE | |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
