Description

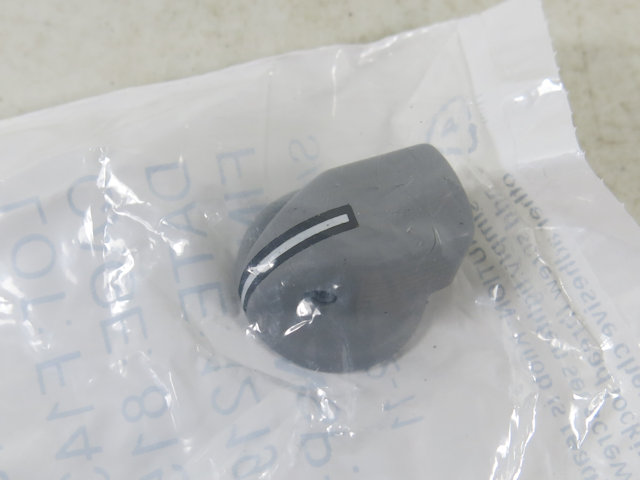

Knob assembly, F-16 aircraft
Korry P/N GP361-101
NSN 5355-01-066-9850
NEW
Free shipping
| AARX | INSIDE DIAMETER | 0.253 INCHES NOMINAL |
| AAWY | COUNTERBORE DIAMETER | 0.380 INCHES NOMINAL |
| AAWZ | COUNTERBORE DEPTH | 0.160 INCHES NOMINAL |
| ABFR | SETSCREW HOLE QUANTITY | 2 |
| ABFU | DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.310 INCHES NOMINAL |
| ABFY | OVERALL DEPTH | 0.560 INCHES NOMINAL |
| ABHG | GRIPPING SURFACE CONDITION | GRIP AID |
| ABHH | SHAFT ACCOMMODATION STYLE | E18 COUNTERBORED |
| ABKV | OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| ABSL | SKIRT STYLE | F1 FLARED |
| ABSP | REFERENCE MARKING | LINE |
| ABSR | POINTER OVERALL LENGTH | 1.000 INCHES NOMINAL |
| ABSS | DISTANCE TO POINTER END | 0.500 INCHES NOMINAL |
| ABSW | SURFACE LUSTER | GLOSS |
| ABSX | ATTACHMENT METHOD | SETSCREWS |
| ADUM | OVERALL THICKNESS | 0.620 INCHES NOMINAL |
| CMLP | THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| CQJX | NOMINAL THREAD SIZE | 0.164 INCHES SCREW HOLE |
| CRPJ | SKIRT OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| CRWX | SKIRT DESIGN | NONDETACHABLE |
| CSKT | POINTER DESIGN | NONDETACHABLE |
| STYL | STYLE DESIGNATOR | A8 ROUND WITH SINGLE POINTED BAR FACE |
| THSD | THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
