Description

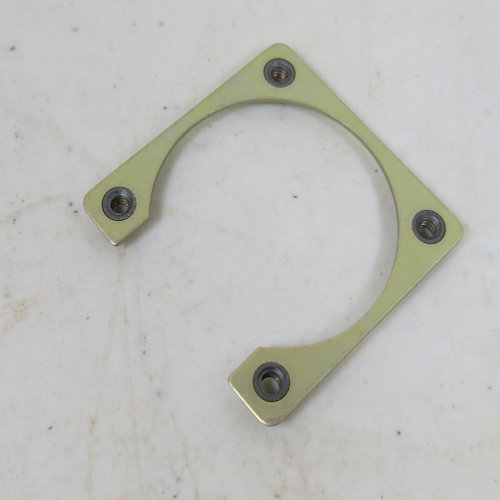

Connector retainer plate assembly
P/N FSU-2401
NSN 5935-01-111-9560
NEW
Free shipping
| AAJD | THREAD CLASS | 3B |
| AAJF | THREAD DIRECTION | RIGHT-HAND |
| ABHP | OVERALL LENGTH | 1.750 INCHES NOMINAL |
| ABKQ | CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.375 INCHES NOMINAL |
| ABKR | CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.375 INCHES NOMINAL |
| ABKW | OVERALL HEIGHT | 0.173 INCHES NOMINAL |
| ABMK | OVERALL WIDTH | 1.750 INCHES NOMINAL |
| ALJP | SIZE DESIGNATION | 24 |
| AXHR | MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| CMLP | THREAD QUANTITY PER INCH | 32 |
| CQJX | NOMINAL THREAD SIZE | 0.138 INCHES |
| MATL | MATERIAL | STEEL, STAINLESS |
| STYL | STYLE DESIGNATOR | 10J SQUARE SHAPE |
| SURF | SURFACE TREATMENT | CADMIUM |
| THSD | THREAD SERIES DESIGNATOR | UNC |
