Description

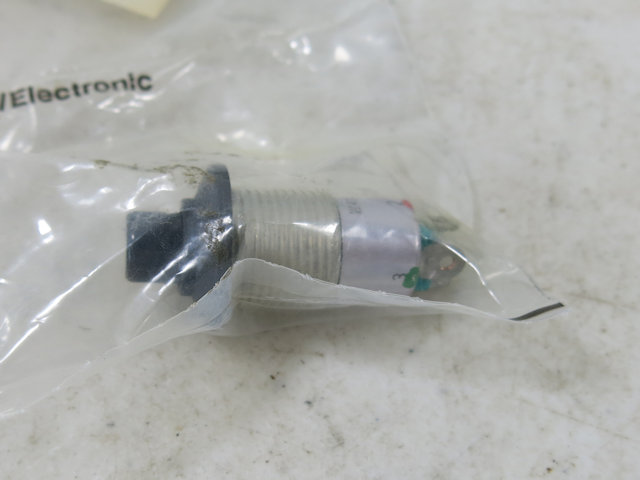

Push switch assembly
Eaton P/N W403P6
NSN 5930-00-990-7257
NEW
Free shipping
| AAJD | THREAD CLASS | 2A |
| AAQL | BODY STYLE | 2K BUSHING MOUNTED |
| ABPM | BODY DIAMETER | 0.312 INCHES NOMINAL |
| ABXD | BUSHING LENGTH | 0.687 INCHES NOMINAL |
| ADAQ | BODY LENGTH | 0.473 INCHES NOMINAL |
| AFUQ | ACTUATOR STYLE | 27 ROUND |
| AFUR | ACTUATOR DIAMETER | 0.375 INCHES NOMINAL |
| AFUS | ACTUATOR HEIGHT | 0.250 INCHES NOMINAL |
| AFXE | MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| AKNA | INCLOSURE TYPE | FULLY INCLOSED |
| AXGY | MOUNTING METHOD | THREADED BUSHING |
| CMLP | THREAD QUANTITY PER INCH | 24 |
| CQJX | NOMINAL THREAD SIZE | 0.625 INCHES |
| CRLD | NONPILE-UP CONTACT ARRANGEMENT | 1 TWO CIRCUIT, DOUBLE BREAK/DOUBLE MAKE, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| CXQR | CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC |
| THSD | THREAD SERIES DESIGNATOR | UNEF |
| TTQY | TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
