Description

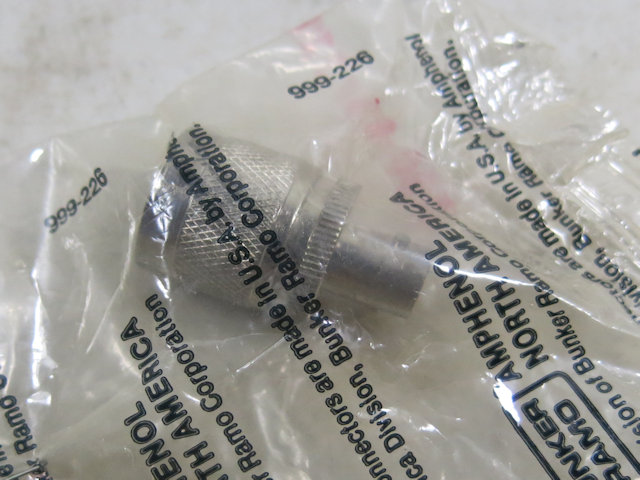

RF connector adapter, BNC(F) to type N(M)
Amphenol
UG-201/U
NSN 5935-00-259-0205
NEW
Free shipping
| AAJD | THREAD CLASS | 2B |
| AAJF | THREAD DIRECTION | RIGHT-HAND |
| AAQL | BODY STYLE | N STRAIGHT SHAPE, EXTERNAL/INTERNAL COUPLING |
| ABHP | OVERALL LENGTH | 1.356 INCHES MAXIMUM |
| ADAV | OVERALL DIAMETER | 0.827 INCHES MAXIMUM |
| ADZC | ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SALT WATER RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT |
| AFQR | THREADED DEVICE TYPE | COUPLING FACILITY |
| AFQW | MATING END QUANTITY | 2 |
| AFQX | CONTACT POSITION ARRANGEMENT STYLE | BCE N 2ND MATING END |
| AFQX | CONTACT POSITION ARRANGEMENT STYLE | BBJ BNC 1ST MATING END |
| AFQZ | CONTACT REMOVABILITY | NONREMOVABLE ALL MATING ENDS SINGLE CONTACT GROUPING |
| AFRE | CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 500.0 ALL MATING ENDS SINGLE CONTACT GROUPING |
| AFRF | CONTACT MAXIMUM FREQUENCY RATING | 4.0 GIGAHERTZ ALL MATING ENDS SINGLE CONTACT GROUPING |
| AFRT | SHELL TYPE | SOLID |
| AFRV | CONNECTOR LOCKING METHOD | BAYONET PIN AND INTERNALLY THREADED COUPLING RING |
| AFRY | RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 ALL MATING ENDS SINGLE CONTACT GROUPING |
| AWTN | OPERATING TEMP RATING | -65.0 DEG CELSIUS MINIMUM AND 165.0 DEG CELSIUS MAXIMUM |
| CMLP | THREAD QUANTITY PER INCH | 24 |
| CQJX | NOMINAL THREAD SIZE | 0.625 INCHES |
| CQTZ | CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS SINGLE CONTACT GROUPING |
| CQYH | CONTACT SURFACE TREATMENT | GOLD ALL MATING ENDS SINGLE CONTACT GROUPING |
| CQZG | INSERT MATERIAL | PLASTIC FLUORINATED ETHYLENE PROPYLENE ALL MATING ENDS OR PLASTIC POLYTETRAFLUOROETHYLENE ALL MATING ENDS |
| CRBJ | CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TYPE 1,CLASS 2,GRADE C MIL SPEC SINGLE TREATMENT RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING |
| CSGF | CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING OR QQ-C-533 FED SPEC SINGLE MATERIAL RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING |
| CSPT | SHELL MATERIAL | COPPER ALLOY |
| CSWM | SHELL SURFACE TREATMENT | SILVER |
| CTBC | SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE |
| CTHH | SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-613 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE |
| CTKL | INSERT MATERIAL DOCUMENT AND CLASSIFICATION | L-P-389 FED SPEC 1ST MATERIAL RESPONSE SINGLE MATING END OR L-P-403 FED SPEC 2ND MATERIAL RESPONSE SINGLE MATING END |
| CXCG | INCLUDED CONTACT QUANTITY | 1 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CXCL | INCLUDED CONTACT TYPE | COAXIAL PIN 2ND MATING END SINGLE CONTACT GROUPING |
| CXCL | INCLUDED CONTACT TYPE | COAXIAL SOCKET 1ST MATING END SINGLE CONTACT GROUPING |
| PMLC | PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD AND BODY SURFACE SILVER |
| PMWT | PRECIOUS MATERIAL AND WEIGHT | 0.010 GOLD GRAINS, TROY AND 0.100 SILVER GRAINS, TROY |
| PRMT | PRECIOUS MATERIAL | GOLD AND SILVER |
| TEST | TEST DATA DOCUMENT | 81349-MIL-PRF-55339 SPECIFICATION |
| THSD | THREAD SERIES DESIGNATOR | UNEF |
| ZZZK | SPECIFICATION/STANDARD DATA | 81349-MIL-PRF-55339/20 GOVERNMENT SPECIFICATION |
