Description

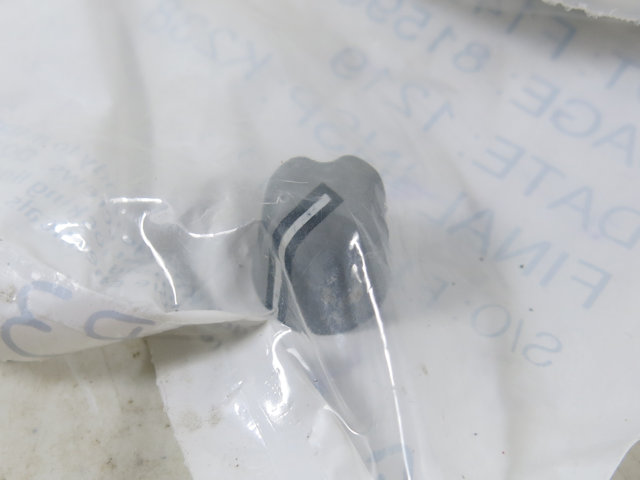

Knob assembly, gray, F-16
Korry P/N TT370-105
NSN 5355-01-201-0327
NEW
Free shipping
| AARX | INSIDE DIAMETER | 0.127 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
| AAWY | COUNTERBORE DIAMETER | 0.250 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| AAWZ | COUNTERBORE DEPTH | 0.080 INCHES NOMINAL |
| ABFR | SETSCREW HOLE QUANTITY | 2 |
| ABFU | DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.250 INCHES NOMINAL |
| ABFY | OVERALL DEPTH | 0.500 INCHES MAXIMUM |
| ABHG | GRIPPING SURFACE CONDITION | GRIP AID |
| ABHH | SHAFT ACCOMMODATION STYLE | E18 COUNTERBORED |
| ABKV | OUTSIDE DIAMETER | 0.620 INCHES NOMINAL |
| ABRY | LENGTH | 0.620 INCHES NOMINAL |
| ABSP | REFERENCE MARKING | LINE |
| ABSX | ATTACHMENT METHOD | SETSCREWS |
| ADUM | OVERALL THICKNESS | 0.560 INCHES NOMINAL |
| AJQE | MATERIAL TRANSPARENCY | CLEAR |
| CBSC | SCREW DRIVE TYPE | HEXAGON SOCKET |
| CMLP | THREAD QUANTITY PER INCH | 40 SCREW HOLE |
| CQJX | NOMINAL THREAD SIZE | 0.112 INCHES SCREW HOLE |
| FEAT | SPECIAL FEATURES | REF MARKING IS A BLACK INDICIA BORDER WITH WHITE LINE |
| MDCL | MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE |
| MDCL | MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-A582 ASSN STD SINGLE MATERIAL RESPONSE |
| SFTT | SURFACE TREATMENT | NICKEL |
| SFTT | SURFACE TREATMENT | PASSIVATE |
| STDC | SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290 FED SPEC SINGLE TREATMENT RESPONSE |
| STDC | SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| STYL | STYLE DESIGNATOR | A26 ROUND WITH CROSS FACE |
| THSD | THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
