Description

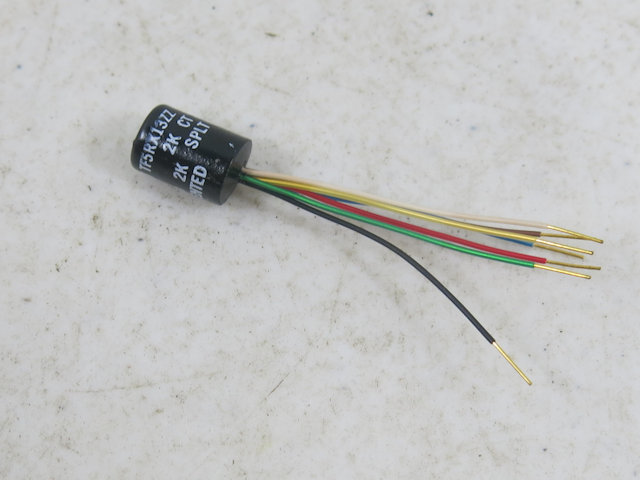

Miniature audio transformer
Military P/N TF5RX13ZZ
NSN 5950-00-160-4733
NEW
Free shipping
| AARG | RELIABILITY INDICATOR | NOT ESTABLISHED |
| ABKW | OVERALL HEIGHT | 0.594 INCHES MAXIMUM |
| ACYW | IMPEDANCE RATING IN OHMS | 2500.0 NOMINAL SINGLE COMPONENT ALL SECONDARY |
| ACYW | IMPEDANCE RATING IN OHMS | 10000.0 NOMINAL SINGLE COMPONENT SINGLE PRIMARY |
| ACZB | FREQUENCY RATING | 300.0 HERTZ MINIMUM SINGLE COMPONENT AND 20.0 KILOHERTZ MAXIMUM SINGLE COMPONENT |
| ACZF | MAXIMUM TRANSFORMER POWER RATING | 100.0 MILLIWATTS SINGLE COMPONENT |
| ADAQ | BODY LENGTH | 0.875 INCHES MAXIMUM |
| ADAT | BODY WIDTH | 0.750 INCHES MAXIMUM |
| ADAU | BODY HEIGHT | 0.563 INCHES MAXIMUM |
| AFGR | FREQUENCY RESPONSE TOLERANCE IN DECIBELS (NON-CORE) | -20.0/+20.0 SINGLE COMPONENT |
| AKNA | INCLOSURE TYPE | FULLY INCLOSED |
| AXGY | MOUNTING METHOD | TERMINAL SINGLE GROUP |
| BPLC | WINDING FUNCTION AND QUANTITY | 1 PRIMARY SINGLE COMPONENT AND 2 SECONDARY SINGLE COMPONENT |
| CQLC | WINDING TAP LOCATION (NON-CORE) | CENTER TAP SINGLE COMPONENT SINGLE PRIMARY |
| CRTL | CRITICALITY CODE JUSTIFICATION | ZZZY |
| FEAT | SPECIAL FEATURES | ITEM MUST COMPLY WITH REQUIREMENTS OF DEFENSE ELECTRONICS SUPPLY CENTER PRODUCTION STANDARD NO. LO0730 |
| TTQY | TERMINAL TYPE AND QUANTITY | 7 PIN |
| ZZZY | REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | REFERENCE NUMBER DIFFERENTIATING MATERIAL WILL BE IN ACCORDANCE WITH |
