Description

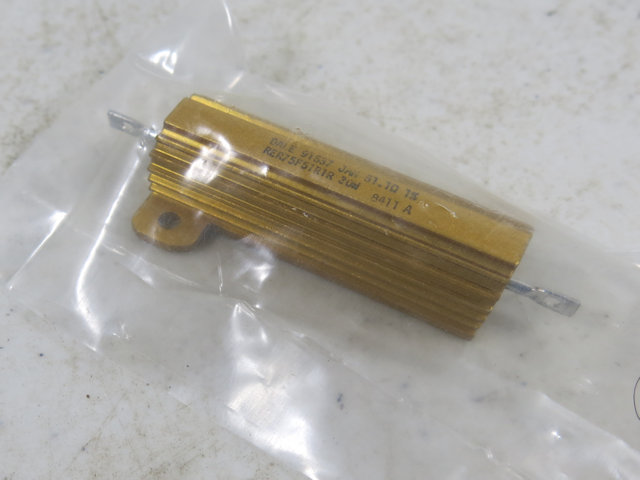

Resistor assembly, fixed, 51.1 Ohm
RER75F51R1R
Ultronix
NSN 5905-00-430-1678
NEW
Free shipping
| AAPE | TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -30.0/+30.0 |
| AAPP | ELECTRICAL RESISTANCE | 51.100 OHMS |
| AAPQ | RESISTANCE TOLERANCE IN PERCENT | -1.000/+1.000 |
| AAPZ | HEAT SINK MATERIAL | ALUMINUM ALLOY |
| AAQA | HEAT SINK LENGTH | 7.000 INCHES |
| AAQB | HEAT SINK WIDTH | 5.000 INCHES |
| AAQD | HEAT SINK HEIGHT | 2.000 INCHES |
| AAQE | HEAT SINK THICKNESS | 0.040 INCHES |
| AAQF | AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 25.0 |
| AAQG | AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 275.0 |
| AAQH | TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -55.0/+275.0 |
| AAQZ | INCLOSURE METHOD | ENCASED |
| AARB | TERMINAL TYPE | TAB, SOLDER LUG |
| AARG | RELIABILITY INDICATOR | ESTABLISHED |
| AARH | RELIABILITY FAILURE RATE LEVEL IN PERCENT | 0.010 |
| ABJT | TERMINAL LENGTH | 0.438 INCHES NOMINAL |
| ADAQ | BODY LENGTH | 1.938 INCHES NOMINAL |
| ADAT | BODY WIDTH | 0.594 INCHES NOMINAL |
| ADAU | BODY HEIGHT | 0.625 INCHES NOMINAL |
| AEBY | DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 1.562 INCHES NOMINAL |
| AEFB | POWER DISSIPATION RATING IN WATTS | 10.000 FREE AIR |
| BYML | MOUNTING HOLE SIZE | 0.125 INCHES NOMINAL |
| STYL | STYLE DESIGNATOR | 148 AXIAL TERMINAL |
| TEST | TEST DATA DOCUMENT | 81349-MIL-R-39009 SPECIFICATION |
