Description

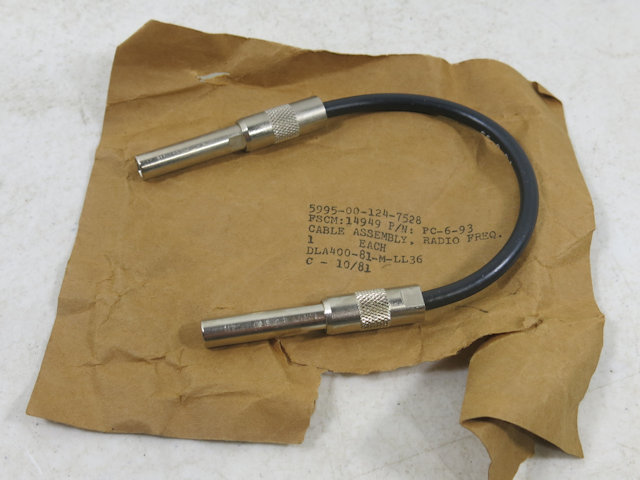

RF patch cable assembly
Trompeter P/N PC-6-93
NSN 5995-00-124-7528
NEW
Free shipping
| AAGR | CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| AAJU | OVERALL LENGTH | 6.000 INCHES |
| AAPP | ELECTRICAL RESISTANCE | 93.00 OHMS IMPEDANCE |
| ADVL | CROSS SECTION OUTSIDE DIAMETER | 0.242 INCHES NOMINAL |
| AKRZ | TERMINATION TYPE | CONNECTOR RECEPTACLE BOTH ENDS SINGLE CONDUCTOR |
| AMQN | CONDUCTOR QUANTITY | 1 |
| CXCW | CONDUCTOR FORM | SOLID SINGLE CONDUCTOR |
| CXDC | ROUND CONDUCTOR SIZE | 22 AWG SINGLE CONDUCTOR |
| CXDQ | CONDUCTOR ARRANGEMENT AND QUANTITY | 1 COAXIAL |
| CXGG | TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | PL-2 2ND END SINGLE CONDUCTOR |
| CXGG | TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | PL-2 1ST END SINGLE CONDUCTOR |
| CXGN | TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 14949 BOTH ENDS SINGLE CONDUCTOR |
| FEAT | SPECIAL FEATURES | RG-62A/U CABLE |
| MATT | MATERIAL | STEEL 1ST POSITION CONDUCTOR SINGLE CONDUCTOR |
| MATT | MATERIAL | COPPER 2ND POSITION CONDUCTOR SINGLE CONDUCTOR |
| MDCL | MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-345 FED SPEC ALL MATERIAL RESPONSES 1ST POSITION CONDUCTOR ALL CONDUCTORS |
| STYL | STYLE DESIGNATOR | 40 INTERNAL AND EXTERNAL CONNECTOR |
