Description

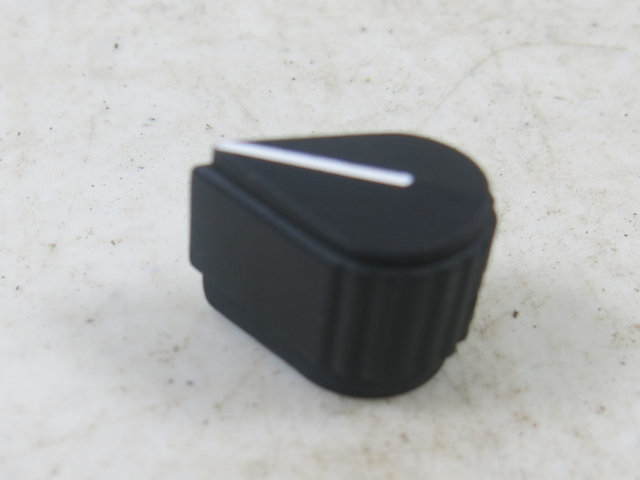

Knob assembly
MS91528-0U3B
NSN 5355-01-052-5161
NEW
Free Shipping
| AARX | INSIDE DIAMETER | 0.127 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
| ABFR | SETSCREW HOLE QUANTITY | 2 |
| ABFU | DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.325 INCHES MAXIMUM |
| ABFY | OVERALL DEPTH | 0.560 INCHES MINIMUM |
| ABGL | WIDTH | 0.490 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| ABHG | GRIPPING SURFACE CONDITION | GRIP AID |
| ABHH | SHAFT ACCOMMODATION STYLE | E4 FLATTED ONE SIDE |
| ABRY | LENGTH | 0.730 INCHES MINIMUM AND 0.780 INCHES MAXIMUM |
| ABSL | SKIRT STYLE | F2 STEPPED |
| ABSP | REFERENCE MARKING | LINE |
| ABSR | POINTER OVERALL LENGTH | 0.730 INCHES MINIMUM AND 0.780 INCHES MAXIMUM |
| ABSS | DISTANCE TO POINTER END | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| ABSW | SURFACE LUSTER | LUSTERLESS |
| ABSX | ATTACHMENT METHOD | SETSCREWS |
| ADJT | INSIDE WIDTH | 0.107 INCHES MINIMUM AND 0.112 INCHES MAXIMUM |
| ADUM | OVERALL THICKNESS | 0.625 INCHES MINIMUM AND 0.685 INCHES MAXIMUM |
| AGAV | END ITEM IDENTIFICATION | SPRUANCE CLASS DD (963),CENTRAL OFFICE, TELEPHONEAUTO,BLUE RIDGE CLASS LCC-19,FLEET SATELLITE COMM TERMINAL, AN/TSC-96A,NIMITZCLASS CVN,TARAWA CLASS LHA,COMMUNICATIONS PLATFORM, AIR DEFENSE (ADP),TICONDEROGA CLASS CG (47),TACTICAL AIR OPNS MODULE (AN/TYQ-(23),ANVT/TACTERM SET, TAAM A00097 |
| CBSC | SCREW DRIVE TYPE | HEXAGON SOCKET |
| CMLP | THREAD QUANTITY PER INCH | 40 SCREW HOLE |
| CQJX | NOMINAL THREAD SIZE | 0.112 INCHES SCREW HOLE |
| CRPJ | SKIRT OUTSIDE DIAMETER | 0.690 INCHES MAXIMUM |
| CRWX | SKIRT DESIGN | NONDETACHABLE |
| CSKT | POINTER DESIGN | NONDETACHABLE |
| FEAT | SPECIAL FEATURES | SHAFT ACCOMMODATION HOLE COUNTERBORE 0.300 IN. MIN DIA,0.177 IN. MIN DEPTH |
| HUES | COLOR | BLACK |
| SFTT | SURFACE TREATMENT | ANODIZE |
| SFTT | SURFACE TREATMENT | PASSIVATE |
| STYL | STYLE DESIGNATOR | A22 POINTER |
| THSD | THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
