Description

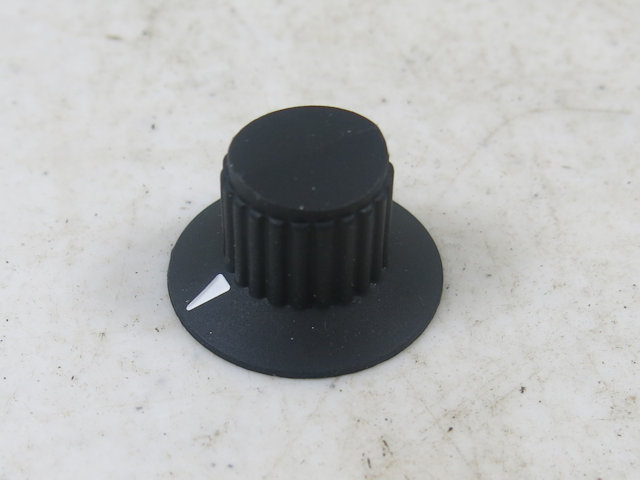

MS91528-0F1B
NSN 5355-00-814-0470
NEW
Free shipping
| AARX | INSIDE DIAMETER | 0.127 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
| AAWY | COUNTERBORE DIAMETER | 0.300 INCHES MINIMUM |
| AAWZ | COUNTERBORE DEPTH | 0.177 INCHES MINIMUM |
| ABFR | SETSCREW HOLE QUANTITY | 2 |
| ABFU | DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.325 INCHES MAXIMUM |
| ABFY | OVERALL DEPTH | 0.560 INCHES MINIMUM |
| ABHG | GRIPPING SURFACE CONDITION | GRIP AID |
| ABHH | SHAFT ACCOMMODATION STYLE | E18 COUNTERBORED |
| ABKV | OUTSIDE DIAMETER | 0.490 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| ABSL | SKIRT STYLE | F1 FLARED |
| ABSP | REFERENCE MARKING | ARROW |
| ABSW | SURFACE LUSTER | LUSTERLESS |
| ABSX | ATTACHMENT METHOD | SETSCREWS |
| ADUM | OVERALL THICKNESS | 0.625 INCHES MINIMUM AND 0.685 INCHES MAXIMUM |
| AJQE | MATERIAL TRANSPARENCY | OPAQUE |
| CBSC | SCREW DRIVE TYPE | HEXAGON SOCKET |
| CMLP | THREAD QUANTITY PER INCH | 40 SCREW HOLE |
| CQJX | NOMINAL THREAD SIZE | 0.112 INCHES SCREW HOLE |
| CRPJ | SKIRT OUTSIDE DIAMETER | 0.900 INCHES MAXIMUM |
| CRWX | SKIRT DESIGN | NONDETACHABLE |
| SFTT | SURFACE TREATMENT | ANODIZE |
| SFTT | SURFACE TREATMENT | PASSIVATE |
| STYL | STYLE DESIGNATOR | A4 ROUND |
| THSD | THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
