Description

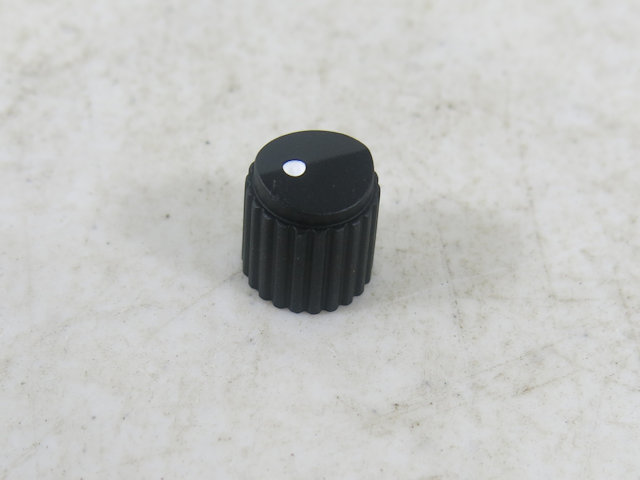

Knob, pointer
MS91528-0C3B
NSN 5355-00-757-5493
NEW
Free shipping
| AARX | INSIDE DIAMETER | 0.127 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
| ABFR | SETSCREW HOLE QUANTITY | 2 |
| ABFU | DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.158 INCHES MAXIMUM |
| ABFY | OVERALL DEPTH | 0.405 INCHES MINIMUM |
| ABHG | GRIPPING SURFACE CONDITION | GRIP AID |
| ABHH | SHAFT ACCOMMODATION STYLE | E4 FLATTED ONE SIDE |
| ABKV | OUTSIDE DIAMETER | 0.490 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| ABSP | REFERENCE MARKING | DOT |
| ABSW | SURFACE LUSTER | LUSTERLESS |
| ABSX | ATTACHMENT METHOD | SETSCREWS |
| ADJT | INSIDE WIDTH | 0.107 INCHES MINIMUM AND 0.112 INCHES MAXIMUM |
| ADUM | OVERALL THICKNESS | 0.480 INCHES MINIMUM AND 0.540 INCHES MAXIMUM |
| AJQE | MATERIAL TRANSPARENCY | OPAQUE |
| CBSC | SCREW DRIVE TYPE | HEXAGON SOCKET |
| CMLP | THREAD QUANTITY PER INCH | 40 SCREW HOLE |
| CQJX | NOMINAL THREAD SIZE | 0.112 INCHES SCREW HOLE |
| FEAT | SPECIAL FEATURES | SHAFT ACCOMMODATION HOLE COUNTERBORED 0.435 IN. MIN DIA 0.026 IN. MIN DEPTH |
| STYL | STYLE DESIGNATOR | A4 ROUND |
| THSD | THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
