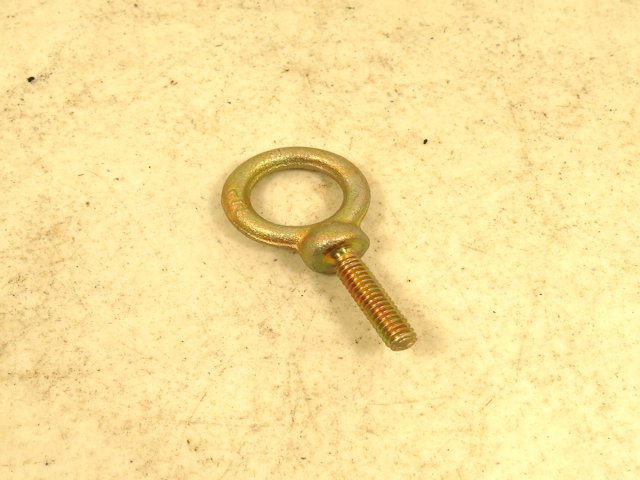

Eye bolt assembly
MS51937-1C
NSN 5306-01-269-8694
NEW
Free shipping
| AAJD | THREAD CLASS | 2A |
| AAJF | THREAD DIRECTION | RIGHT-HAND |
| AASA | THREAD LENGTH | 0.750 INCHES MINIMUM |
| AATK | EYE INSIDE DIAMETER | 0.690 INCHES MINIMUM AND 0.810 INCHES MAXIMUM |
| AATP | SHOULDER THICKNESS | 0.120 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| AATR | SHANK LENGTH | 1.000 INCHES MINIMUM AND 1.060 INCHES MAXIMUM |
| AATZ | EYE STOCK DIAMETER | 0.190 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| AAVH | SHOULDER DIAMETER | 0.500 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| ABHP | OVERALL LENGTH | 2.220 INCHES MINIMUM AND 2.530 INCHES MAXIMUM |
| AHYM | NOMINAL THREAD DIAMETER | 0.250 INCHES |
| CMLP | THREAD QUANTITY PER INCH | 20 |
| CRHT | DISTANCE FROM CENTER OF EYE TO SHANK END | 1.069 INCHES MINIMUM AND 1.141 INCHES MAXIMUM |
| CWXM | EYE OUTSIDE WIDTH | 1.190 INCHES NOMINAL |
| MATT | MATERIAL | STEEL OVERALL |
| SFTT | SURFACE TREATMENT | CADMIUM OVERALL AND CHROMATE OVERALL |
| STDC | SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY2 CL3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYL | STYLE DESIGNATOR | B11 ROUND, CLOSED W/SHOULDER |
| THSD | THREAD SERIES DESIGNATOR | UNC |
