Description

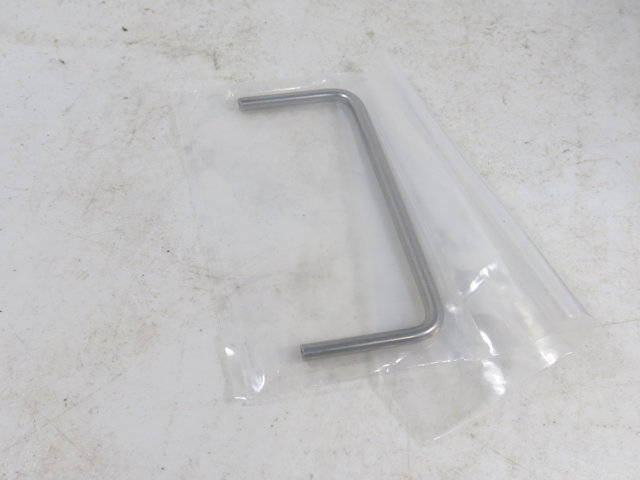

Handle assembly, bow
MS39087-306CP
NSN 5340-01-142-4470
NEW
Free shipping
| ABHP | OVERALL LENGTH | 3.310 INCHES NOMINAL |
| ABKQ | CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.000 INCHES NOMINAL |
| AKPV | MOUNTING FACILITY QUANTITY | 2 |
| ALMZ | HANDLE CLEARANCE | 1.188 INCHES NOMINAL |
| CQJX | NOMINAL THREAD SIZE | 0.190 INCHES |
| MATT | MATERIAL | STEEL COMP 304 OVERALL |
| MDCL | MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SFTT | SURFACE TREATMENT | PASSIVATE OVERALL |
| STDC | SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| THSD | THREAD SERIES DESIGNATOR | UNF |
