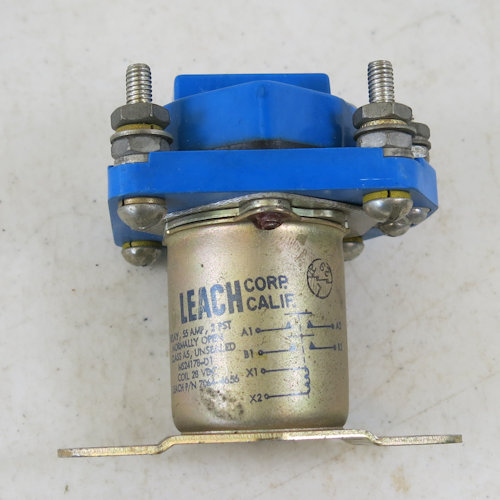

Relay assembly, 55 amp
Leach P/N 7064-4656
NSN 5945-00-729-1358
USED
Free shipping
| ABHP | OVERALL LENGTH | 3.062 INCHES MAXIMUM |
| ABKQ | CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.375 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| ABKW | OVERALL HEIGHT | 2.781 INCHES MAXIMUM |
| ABMK | OVERALL WIDTH | 2.031 INCHES MAXIMUM |
| ADTV | CASE MATERIAL | METAL |
| ADZC | ENVIRONMENTAL PROTECTION | HERMETIC |
| AEBV | UNTHREADED MOUNTING HOLE DIAMETER | 0.218 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| AFJN | FRAGILITY FACTOR | MODERATELY RUGGED |
| AKDX | WINDING QUANTITY | 1 |
| AKSL | PURPOSE FOR WHICH DESIGNED | GENERAL |
| APCN | COIL QUANTITY | 1 |
| APNA | WINDING DC RESISTANCE RATING | 59.0 OHMS MINIMUM SINGLE WINDING |
| APNP | DUTY TYPE | CONTINUOUS |
| APNQ | ARC QUENCHING METHOD | AIR |
| AXHR | MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| BBRG | STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| CBME | CUBIC MEASURE | 17.294 CUBIC INCHES |
| CQYJ | MOUNTING FACILITY PATTERN | IN-LINE SINGLE MOUNTING FACILITY |
| CRNG | NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION |
| CRXH | TIME DELAY | 0.03 SECONDS MAXIMUM FIXED OPERATE TIME |
| CRXH | TIME DELAY | 0.01 SECONDS MAXIMUM FIXED RELEASE TIME |
| CSXF | OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| CTDL | MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 55.0 AMPERES AC RESISTIVE LOAD AND 55.0 AMPERES DC RESISTIVE LOAD |
| CTDL | MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 35.0 AMPERES AC MOTOR LOAD AND 40.0 AMPERES DC MOTOR LOAD |
| CTDL | MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 40.0 AMPERES DC INDUCTIVE LOAD |
| CWAB | MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| PKWT | UNPACKAGED UNIT WEIGHT | 0.750 POUNDS |
| TEST | TEST DATA DOCUMENT | 81349-MIL-R-6106 SPECIFICATION |
| TTQY | TERMINAL TYPE AND QUANTITY | 6 THREADED STUD ALL FUNCTIONS |
| ZZZK | SPECIFICATION/STANDARD DATA | 96906-MS24178 GOVERNMENT STANDARD |
