Description

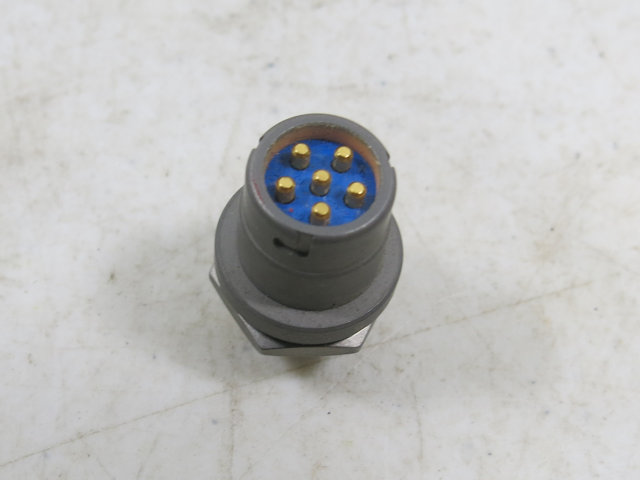

Waterproof audio connector assembly, 6 pin
Phoenix P/N MC683S
NSN 5935-01-158-0374
NEW
Free shipping
| AAQL | BODY STYLE | 7G STRAIGHT SHAPE THREADED |
| ABHP | OVERALL LENGTH | 1.135 INCHES NOMINAL |
| ADAV | OVERALL DIAMETER | 0.812 INCHES NOMINAL |
| ADZC | ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND MOISTURE RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT |
| AFQK | DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.655 INCHES NOMINAL |
| AFQW | MATING END QUANTITY | 1 |
| AFQZ | CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| AFRN | POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| AFRP | INSERT POSITION IN DEG | 0.0 |
| AFRT | SHELL TYPE | SOLID |
| AFRV | CONNECTOR LOCKING METHOD | BAYONET LATCH |
| CQTM | TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| CQTZ | CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CQYH | CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CQZG | INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| CRBJ | CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| CSCF | TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| CSPT | SHELL MATERIAL | STEEL |
| CSWM | SHELL SURFACE TREATMENT | PASSIVATE |
| CTKL | INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14F,TYPE MDG MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| CXCG | INCLUDED CONTACT QUANTITY | 6 SINGLE MATING END SINGLE CONTACT GROUPING |
| CXCJ | BUSHING ACCOMMODATION HOLE SHAPE | ROUND W/DOUBLE FLAT |
| CXCL | INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| PMLC | PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| PMWT | PRECIOUS MATERIAL AND WEIGHT | 0.030 GOLD GRAINS, TROY |
| PRMT | PRECIOUS MATERIAL | GOLD |
