Description

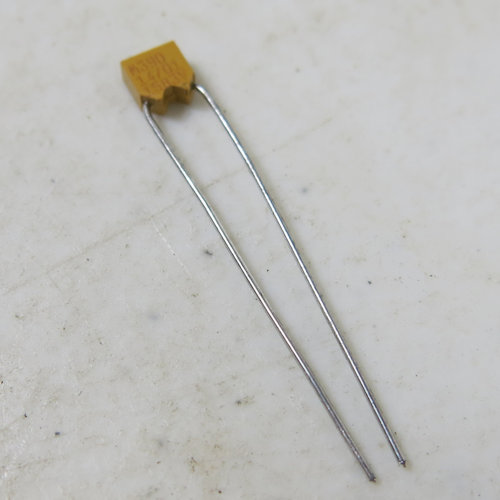

Capacitor, fixed
Kemet P/N C056T273K5X5CS
M39014/01-1583V
NSN 5910-01-396-4551
NEW
Free shipping
| AAQL | BODY STYLE | 27A W/O MTG FACILITIES TERMINAL(S) ON ONE SURFACE |
| AARG | RELIABILITY INDICATOR | ESTABLISHED |
| AARH | RELIABILITY FAILURE RATE LEVEL IN PERCENT | 0.001 |
| ABHP | OVERALL LENGTH (NON-CORE) | 0.180 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| ABJT | TERMINAL LENGTH | 1.250 INCHES MINIMUM |
| ABKW | OVERALL HEIGHT (NON-CORE) | 0.080 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| ABMK | OVERALL WIDTH (NON-CORE) | 0.180 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| ADAQ | BODY LENGTH | 0.180 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| ADAT | BODY WIDTH | 0.180 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| ADAU | BODY HEIGHT | 0.080 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| AEBP | CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 0.185 INCHES MINIMUM AND 0.215 INCHES MAXIMUM |
| AEBT | TERMINAL DIAMETER | 0.023 INCHES MINIMUM AND 0.029 INCHES MAXIMUM |
| AEBZ | SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| CQBF | INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 10000.0 MEGOHMS |
| CQBQ | CAPACITANCE VALUE PER SECTION | 27000.000 PICOFARADS SINGLE SECTION |
| CQFB | VOLTAGE TEMP LIMITS PER SECTION IN PERCENT CAPACITANCE CHANGE | -25.0/+15.0 WITH RATED VOLTAGE APPLIED SINGLE SECTION |
| CQJJ | NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| CQWM | NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 50.0 DC SINGLE SECTION |
| CRTP | TOLERANCE RANGE PER SECTION | -10.00/+10.00 PERCENT SINGLE SECTION |
| CWJK | CASE MATERIAL | PLASTIC |
| CWPK | INSULATION RESISTANCE AT REFERENCE TEMP | 100000.0 MEGOHMS |
| CWPM | DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 2.500 |
| CWSG | TERMINAL SURFACE TREATMENT | SOLDER |
| TEST | TEST DATA DOCUMENT | 81349-MIL-C-39014 SPECIFICATION |
| TTQY | TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| ZZZK | SPECIFICATION/STANDARD DATA | 81349-MIL-C-39014/1 GOVERNMENT SPECIFICATION |
