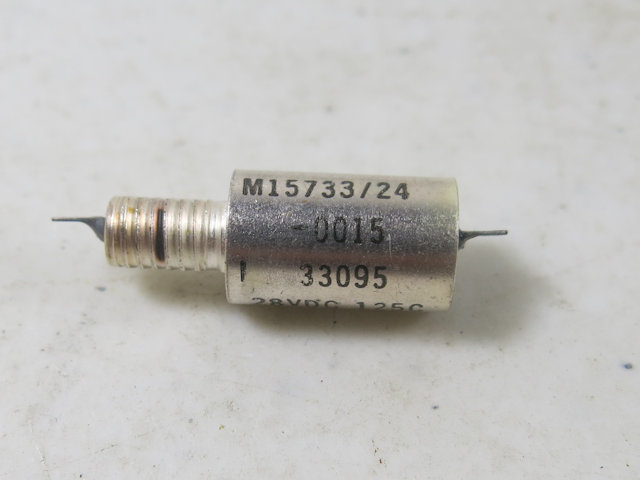

RF filter assembly
M15733/24-0015
NSN 5915-01-114-1891
NEW
Mounting hardware included
Free shipping
| ABHP | OVERALL LENGTH | 1.252 INCHES MAXIMUM |
| ADAQ | BODY LENGTH | 0.892 INCHES MAXIMUM |
| ADAR | BODY OUTSIDE DIAMETER | 0.385 INCHES MAXIMUM |
| AHAQ | SOURCE IMPEDANCE RATING PER FUNCTION | 50.0 OHMS BLANK |
| AHAS | LOAD IMPEDANCE PER FUNCTION | 50.0 OHMS BLANK |
| AHBC | OPERATING CURRENT RATING PER FUNCTION IN AMPS | 0.2 BLANK |
| AHBE | MAXIMUM VOLTAGE DROP PER FUNCTION | 1.0 VOLTS DC BLANK |
| AKEJ | MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| AKNA | INCLOSURE TYPE | HERMETICALLY SEALED |
| AXHR | MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| CQDW | FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG INPUT |
| CQDW | FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG OUTPUT |
| CQGC | OPERATING VOLTAGE RATING AND TYPE PER FUNCTION | 28.0 VOLTS DC BLANK |
| CQJX | NOMINAL THREAD SIZE | 0.250 INCHES |
| STYL | STYLE DESIGNATOR | 9 ROUND TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| TEST | TEST DATA DOCUMENT | 81349-MIL-F-15733/24 SPECIFICATION |
