Description

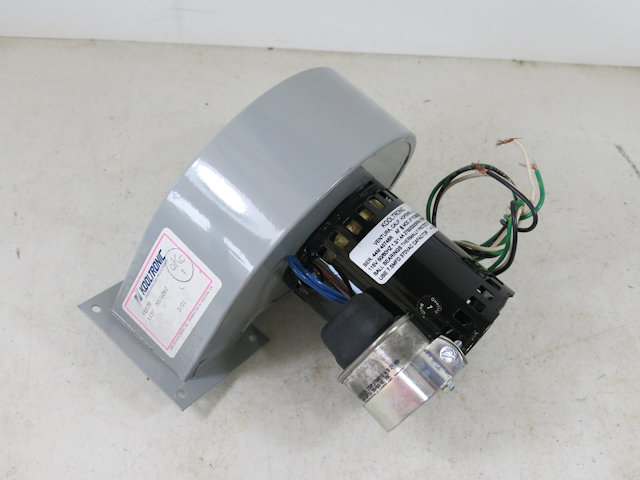

Centrifugal fan assembly
Kooltronic P/N KBB38
NSN 4140-01-222-2124
NEW
Free shipping
| ABBB | SPEED ADJUSTMENTS | SINGLE SPEED |
| ABRY | LENGTH | 6.500 INCHES NOMINAL |
| AGBD | ELECTRICAL CONNECTION TYPE | CORD W/ATTACHED PLUG |
| AJLU | OUTLET INSIDE WIDTH | 2.250 INCHES NOMINAL |
| AJLV | OUTLET INSIDE HEIGHT | 2.000 INCHES NOMINAL |
| AJLY | STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| AKCV | DRIVE TYPE | DIRECT |
| AKDJ | PRIME MOVER TYPE | ELECTRIC MOTOR |
| AKNA | INCLOSURE TYPE | FULLY INCLOSED |
| CQKX | AIR FLOW RATE | 150.000 CUBIC FEET PER MINUTE NOMINAL |
| CSBH | VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| CSYL | PRIME MOVER POWER RATING | 0.134 HORSEPOWER |
| CWLY | PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| FAAZ | PHASE | SINGLE |
| HGTH | HEIGHT | 6.875 INCHES NOMINAL |
| MATT | MATERIAL | STEEL OVERALL |
| NMBR | QUANTITY | 1 |
| PRPY | PROPRIETARY CHARACTERISTICS | MRCS |
| STYL | STYLE DESIGNATOR | 50 FIXED, RECTANGULAR OUTLETS |
