Description

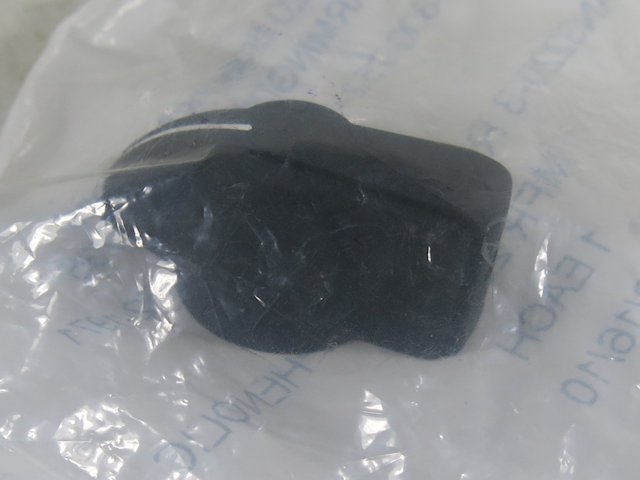

Knob assembly
AN3220-3
NSN 5355-00-538-7331
NEW
Free shipping
| AARX | INSIDE DIAMETER | 0.253 INCHES NOMINAL |
| ABFR | SETSCREW HOLE QUANTITY | 1 |
| ABFU | DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.375 INCHES NOMINAL |
| ABFY | OVERALL DEPTH | 0.594 INCHES NOMINAL |
| ABHG | GRIPPING SURFACE CONDITION | SMOOTH |
| ABHH | SHAFT ACCOMMODATION STYLE | E4 FLATTED ONE SIDE |
| ABKV | OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| ABSL | SKIRT STYLE | F3 RING |
| ABSP | REFERENCE MARKING | ARROW |
| ABSR | POINTER OVERALL LENGTH | 1.500 INCHES NOMINAL |
| ABSS | DISTANCE TO POINTER END | 0.750 INCHES NOMINAL |
| ABSW | SURFACE LUSTER | LUSTERLESS |
| ABSX | ATTACHMENT METHOD | SETSCREWS |
| ADJT | INSIDE WIDTH | 0.223 INCHES NOMINAL |
| ADUM | OVERALL THICKNESS | 0.844 INCHES NOMINAL |
| CBSC | SCREW DRIVE TYPE | HEXAGON SOCKET |
| CMLP | THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| CQJX | NOMINAL THREAD SIZE | 0.164 INCHES SCREW HOLE |
| CRPJ | SKIRT OUTSIDE DIAMETER | 0.719 INCHES NOMINAL |
| CRWX | SKIRT DESIGN | NONDETACHABLE |
| CSKT | POINTER DESIGN | NONDETACHABLE |
| STYL | STYLE DESIGNATOR | A8 ROUND WITH SINGLE POINTED BAR FACE |
| THSD | THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| ZZZK | SPECIFICATION/STANDARD DATA | 96906-MS25166 GOVERNMENT STANDARD |
