Description

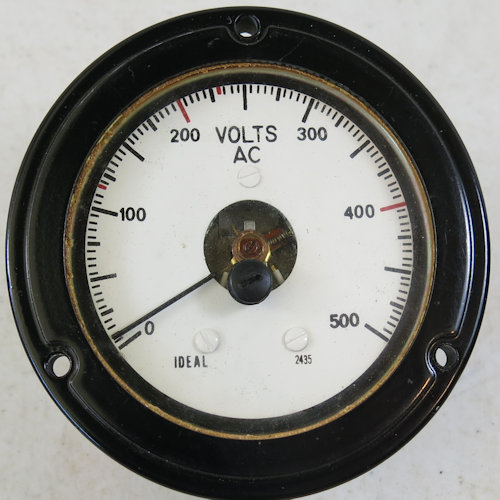

AC Voltmeter
Ideal P/N 849093
NSN 6625-01-268-6360
NEW
Free shipping
| AACT | CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| AAPB | DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 3000.0 |
| ABHP | OVERALL LENGTH | 2.500 INCHES MAXIMUM |
| ABTB | MOUNTING HOLE DIAMETER | 0.150 INCHES NOMINAL |
| ABWG | SCALE DIVISION QUANTITY | 100 SINGLE INDICATOR SINGLE RANGE |
| ADAV | OVERALL DIAMETER | 3.500 INCHES MAXIMUM |
| ADZC | ENVIRONMENTAL PROTECTION | COLD RESISTANT AND HEAT RESISTANT AND SHOCK RESISTANT AND SUBMERSIBLE AND VIBRATION RESISTANT AND WATERTIGHT |
| AFFL | MOUNTING BOLT CIRCLE DIAMETER | 3.160 INCHES MAXIMUM |
| AKYN | FURNISHED ITEMS AND QUANTITY | MTG HDW 3; TERM. HDW 2 |
| AMKD | INDICATOR TYPE | DIAL W/POINTER |
| AMQY | INSTALLATION DESIGN | PANEL |
| ANRL | MOUNTING ARRANGEMENT STYLE | E5 THREE HOLE/STUD BOLT CIRCLE |
| APMM | DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| APPN | ACCURACY IN PERCENT | -2.5/+2.5 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| APSN | PANEL FOR WHICH DESIGNED (NON-CORE) | MAGNETIC OR NONMAGNETIC |
| APST | METER DEPTH BEHIND MOUNTING FLANGE | 1.460 INCHES MAXIMUM |
| APSW | METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.670 INCHES MAXIMUM |
| AQEC | MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| AQFY | BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| ASSS | POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| AWZJ | POWER SOURCE | EXTERNAL |
| AXHR | MOUNTING FACILITY TYPE AND QUANTITY | 3 SCREW AND 3 UNTHREADED HOLE |
| BHDC | SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| BHMW | MEASUREMENT RANGE | +0.0/+500.0 VOLTS, AC SINGLE INDICATOR SINGLE RANGE |
| BHSX | CIRCUIT CONSTRUCTION TYPE (NON-CORE) | NONELECTRONIC |
| CBBL | FEATURES PROVIDED | ZERO ADJUSTER |
| CTQL | MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CTTD | CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| FEAT | SPECIAL FEATURES | RUGGEDIZED |
| MARK | SPECIAL MARKINGS | DOUBLE WIDTH RED MARKINGS AT 115,200,230,AND 400 VOLT POINTS |
| MATT | MATERIAL | STEEL CORROSION RESISTING |
| NHCF | NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| PRPY | PROPRIETARY CHARACTERISTICS | PACS |
| SFTT | SURFACE TREATMENT | ENAMEL SEMIGLOSS |
| STYL | STYLE DESIGNATOR | C1 ROUND FLUSH MTG |
| SUPP | SUPPLEMENTARY FEATURES | WITHIN RANGES OF 115 TO 125V AND 200 TO 250V ERROR SHALL NOT EXCEED 5 AND 1OV RESPECTIVELY |
| ZZZV | FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
