Description

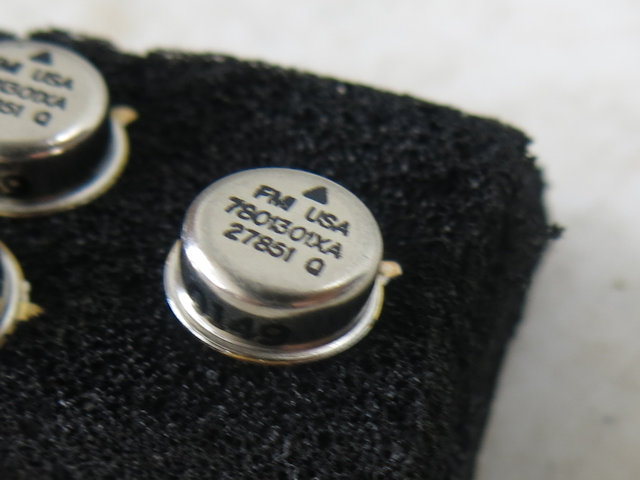

Linear microcircuit
FMI P/N 7801301XA
NSN 5962-01-263-0950
NEW
Free shipping
| ADAR | BODY OUTSIDE DIAMETER | 0.335 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| ADAU | BODY HEIGHT | 0.155 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| AEHX | MAXIMUM POWER DISSIPATION RATING | 600.0 MILLIWATTS |
| AFGA | OPERATING TEMP RANGE | -55.0/+125.0 DEG CELSIUS |
| AFJQ | STORAGE TEMP RANGE | -65.0/+150.0 DEG CELSIUS |
| CBBL | FEATURES PROVIDED | HYBRID AND THICK FILM AND THIN FILM |
| CQSJ | INCLOSURE MATERIAL | METAL |
| CQSZ | INCLOSURE CONFIGURATION | CAN |
| CQZP | INPUT CIRCUIT PATTERN | 1 INPUT |
| CSSL | DESIGN FUNCTION AND QUANTITY | 1 AMPLIFIER, CURRENT |
| CXCY | PART NAME ASSIGNED BY CONTROLLING AGENCY | MICROCIRCUIT,HYBRID,LINEAR,HIGH CURRENT AMPLIFIER,THICK/THIN FILM |
| CZEN | VOLTAGE RATING AND TYPE PER CHARACTERISTIC | -22.0 VOLTS MINIMUM POWER SOURCE AND 22.0 VOLTS MAXIMUM POWER SOURCE |
| TEST | TEST DATA DOCUMENT | 96906-MIL-STD-883 STANDARD |
| TTQY | TERMINAL TYPE AND QUANTITY | 8 PIN |
