Description

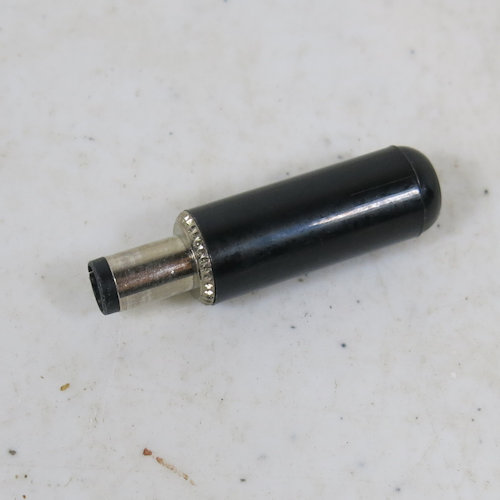

DC POWER PLUG, 0.100″ (2.5mm) ID pin, 1.4″ (36mm) overall length, black insulator tip, black handle
Switchcraft P/N 760
NSN 5935-01-181-4746
NEW
Free shipping
| AALV | ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| AAPC | IDENTIFICATION CODE COLOR | BLACK |
| AAQL | BODY STYLE | 5 STRAIGHT HANDLE |
| ABHP | OVERALL LENGTH | 1.750 INCHES MAXIMUM |
| ADAQ | BODY LENGTH | 1.375 INCHES NOMINAL |
| ADAV | OVERALL DIAMETER | 0.375 INCHES MAXIMUM |
| AFQJ | CABLE ENTRANCE DIAMETER | 0.062 INCHES NOMINAL |
| AFXE | MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| AFXQ | FINGER TYPE | TEST PROD SINGLE FINGER |
| AFXW | FINGER LENGTH | 0.375 INCHES MAXIMUM SINGLE FINGER |
| AFXX | FINGER DIAMETER | 0.100 INCHES MAXIMUM SINGLE FINGER |
| AGAV | END ITEM IDENTIFICATION | 6665-01-153-8474 |
| AMPS | CURRENT RATING IN AMPS | NOT RATED |
| CSCF | TERMINAL TYPE | TAB, SOLDER LUG |
| MATL | MATERIAL | COPPER FINGER |
| MATL | MATERIAL | PLASTIC HANDLE |
| SURF | SURFACE TREATMENT | NICKEL FINGER |
