Description
Microcircuit Digital – TTL, Schottky Octal Bus Transceiver
5962-9214801Q2A
NSN 5962-01-552-8705

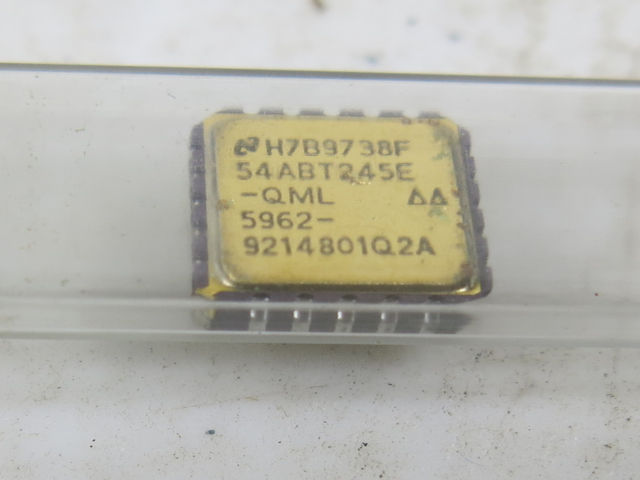

National 54ABT245EQML
NSN 5962-01-487-4126
NEW
Free shipping
| AEHX | MAXIMUM POWER DISSIPATION RATING | 500.0 MILLIWATTS |
| AFGA | OPERATING TEMP RANGE | -55.0/+125.0 DEG CELSIUS |
| AFJQ | STORAGE TEMP RANGE | -65.0/+150.0 DEG CELSIUS |
| AGAV | END ITEM IDENTIFICATION | CP-2358/SPN-4 |
| CBBL | FEATURES PROVIDED | 3-STATE OUTPUT AND MONOLITHIC |
| CQSZ | INCLOSURE CONFIGURATION | DUAL-IN-LINE |
| CQWX | OUTPUT LOGIC FORM | BIPOLAR METAL-OXIDE SEMICONDUCTOR |
| CSSL | DESIGN FUNCTION AND QUANTITY | 8 TRANSCEIVER |
| CWSG | TERMINAL SURFACE TREATMENT | SOLDER |
| CXCY | PART NAME ASSIGNED BY CONTROLLING AGENCY | MICROCIRCUIT, DIGITAL, ADVANCED BIPOLAR CMOS, OCTAL TRANSCEIVER WITH 3-STATE OUTPUTS, TTL COMPATIBLE INPUTS, MONOLITHIC SILICON |
| CZEN | VOLTAGE RATING AND TYPE PER CHARACTERISTIC | -0.5 VOLTS MINIMUM POWER SOURCE AND 7.0 VOLTS MAXIMUM POWER SOURCE |
| TEST | TEST DATA DOCUMENT | 96906-MIL-STD-883 STANDARD |
| TTQY | TERMINAL TYPE AND QUANTITY | 20 PRINTED CIRCUIT |
