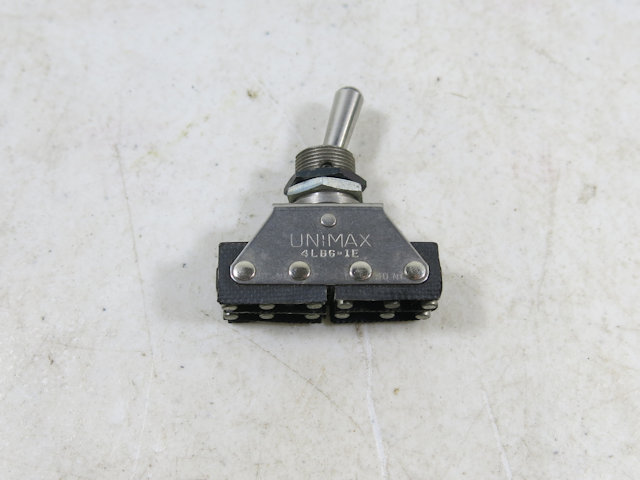

Toggle switch assembly, 4PDT
UNIMAX P/N 4LB6-1E
NSN 5930-00-955-1722
NEW
Free shipping
| AAQL | BODY STYLE | 7P BUSHING MOUNT |
| ABHP | OVERALL LENGTH | 1.578 INCHES MAXIMUM |
| ABKW | OVERALL HEIGHT | 1.990 INCHES NOMINAL |
| ABMK | OVERALL WIDTH | 0.670 INCHES MAXIMUM |
| ABXD | BUSHING LENGTH | 0.470 INCHES NOMINAL |
| ADAQ | BODY LENGTH | 1.578 INCHES MAXIMUM |
| ADAT | BODY WIDTH | 0.670 INCHES MAXIMUM |
| AFUQ | ACTUATOR STYLE | 25 ROUND |
| AFUR | ACTUATOR DIAMETER | 0.240 INCHES NOMINAL |
| AFUS | ACTUATOR HEIGHT | 0.690 INCHES NOMINAL |
| AFUX | ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| AFXE | MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 30.0 DC |
| AJWX | MOUNTING SURFACE TO TERMINAL END DISTANCE | 0.830 INCHES NOMINAL |
| AKNA | INCLOSURE TYPE | UNINCLOSED |
| AXGY | MOUNTING METHOD | THREADED BUSHING |
| CMLP | THREAD QUANTITY PER INCH | 32 |
| CQJX | NOMINAL THREAD SIZE | 0.469 INCHES |
| CRLD | NONPILE-UP CONTACT ARRANGEMENT | 4 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| CXQR | CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 6.000 AMPERES RESISTIVE DC AND 6.000 AMPERES RESISTIVE AC |
| THSD | THREAD SERIES DESIGNATOR | UNS |
| TTQY | TERMINAL TYPE AND QUANTITY | 12 TAB, SOLDER LUG |
