Description

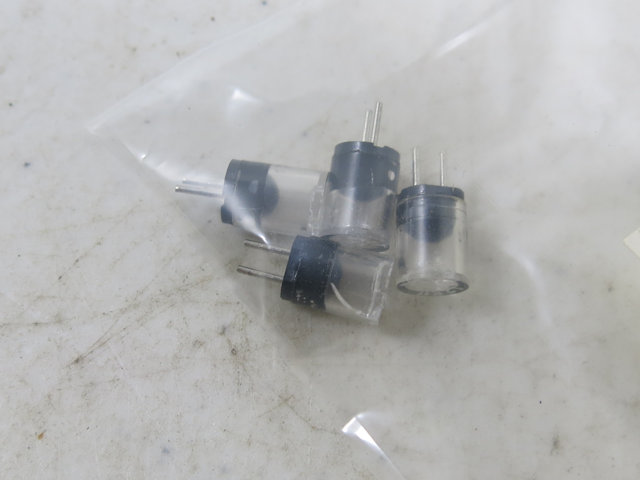

Fuse assembly, 3 Amp
Littlefuse P/N 273-003
NSN 5920-01-350-8640
NEW
Free shipping
| AAQL | BODY STYLE | 30A PLUG-IN TYPE |
| ABDM | TERMINAL MATERIAL | COPPER |
| ABDN | TERMINAL SURFACE TREATMENT | SOLDER DIP |
| ABHP | OVERALL LENGTH | 0.518 INCHES NOMINAL |
| ABJT | TERMINAL LENGTH | 0.170 INCHES NOMINAL |
| ADAQ | BODY LENGTH | 0.348 INCHES NOMINAL |
| ADAV | OVERALL DIAMETER | 0.250 INCHES NOMINAL |
| ADTV | CASE MATERIAL | PLASTIC |
| AEBJ | CONTINUOUS CURRENT RATING IN AMPS | 3.000 |
| AEBX | CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 0.100 INCHES NOMINAL |
| AFJN | FRAGILITY FACTOR | MODERATELY RUGGED |
| AFXE | MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC AND 125.0 DC |
| AFXF | CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| AFXH | INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| AGAV | END ITEM IDENTIFICATION | 6625-01-292-6530 TEST SET,ELECTR |
| CBBL | FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| CSQN | SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 10000.0 |
| PRPY | PROPRIETARY CHARACTERISTICS | PACS |
