Description

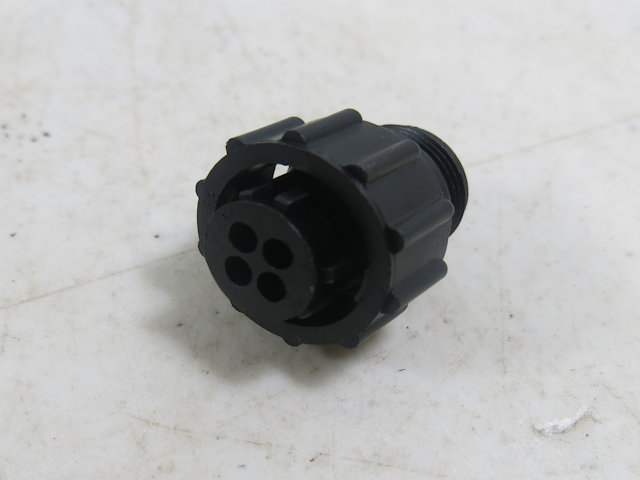

Connector plug assembly, 4 position
AMP P/N 206060-1
NSN 5935-01-090-1561
NO PINS or BACK
NEW
Free shipping
| AAQL | BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| ABHP | OVERALL LENGTH | 0.930 INCHES MAXIMUM |
| ADAV | OVERALL DIAMETER | 1.094 INCHES MAXIMUM |
| ADZC | ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT |
| AFQW | MATING END QUANTITY | 1 |
| AFQX | CONTACT POSITION ARRANGEMENT STYLE | AEEA B4S SINGLE MATING END |
| AFQZ | CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| AFRC | CONTACT MAXIMUM CURRENT RATING IN AMPS | 13.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| AFRN | POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| AFRP | INSERT POSITION IN DEG | 0.0 |
| AFRT | SHELL TYPE | SOLID |
| AFRV | CONNECTOR LOCKING METHOD | BAYONET LATCH |
| CQTM | TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| CQTZ | CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CQYH | CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING |
| CQZG | INSERT MATERIAL | PLASTIC SINGLE MATING END |
| CSCF | TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| CSPT | SHELL MATERIAL | PLASTIC PHENOLIC |
| CXCG | INCLUDED CONTACT QUANTITY | 4 SINGLE MATING END SINGLE CONTACT GROUPING |
| CXCL | INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
