Description

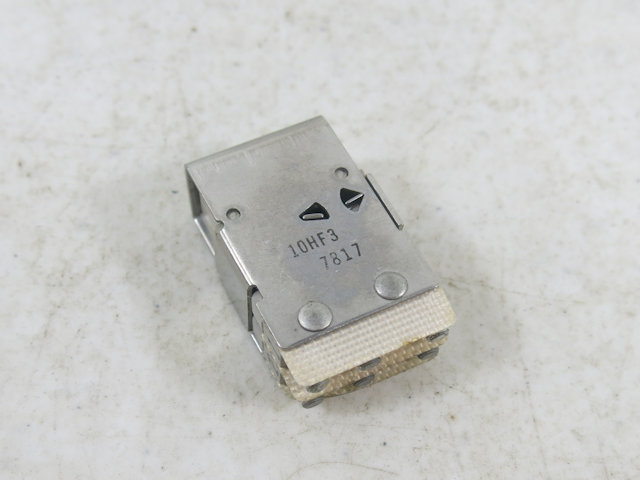

Push switch assembly, Dual SPDT
10HF3
NSN 5930-01-048-8862
NEW
Free shipping
| AAQL | BODY STYLE | 32K FEED-THRU |
| ABHP | OVERALL LENGTH | 1.200 INCHES MAXIMUM |
| ABKW | OVERALL HEIGHT | 1.062 INCHES MAXIMUM |
| ABMK | OVERALL WIDTH | 0.844 INCHES MAXIMUM |
| ADAQ | BODY LENGTH | 1.200 INCHES MAXIMUM |
| ADAT | BODY WIDTH | 0.844 INCHES MAXIMUM |
| AFXE | MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| AKNA | INCLOSURE TYPE | UNINCLOSED |
| AXGY | MOUNTING METHOD | UNTHREADED HOLE |
| CRLD | NONPILE-UP CONTACT ARRANGEMENT | 4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| CXQR | CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES RESISTIVE AC |
| PMLC | PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
| PRMT | PRECIOUS MATERIAL | SILVER |
| TTQY | TERMINAL TYPE AND QUANTITY | 12 TURRET |
| ZZZY | REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | NAVORD OD42046 |
