Description

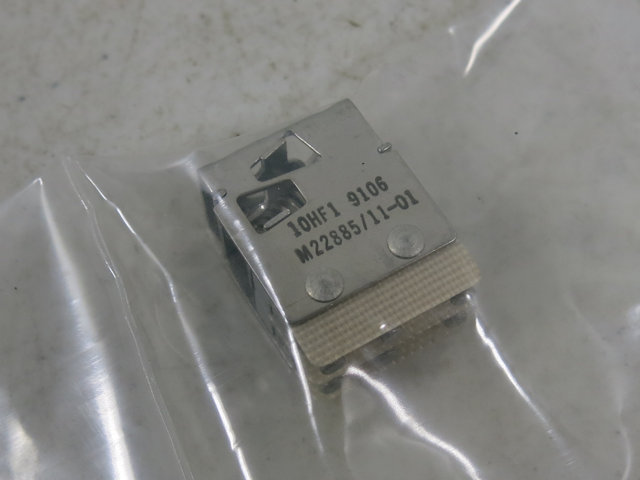

Switch module assembly, dual SPDT
Eaton P/N 10HF1
Military M22885/11-01
NSN 5930-00-948-8962
NEW
Free shipping
| AAQL | BODY STYLE | 33K PENDANT |
| ABHP | OVERALL LENGTH | 0.844 INCHES MAXIMUM |
| ABKW | OVERALL HEIGHT | 1.062 INCHES MAXIMUM |
| ABMK | OVERALL WIDTH | 0.660 INCHES MAXIMUM |
| ADAQ | BODY LENGTH | 0.844 INCHES MAXIMUM |
| ADAT | BODY WIDTH | 0.660 INCHES MAXIMUM |
| AFXE | MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| AKNA | INCLOSURE TYPE | UNINCLOSED |
| CRLD | NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| CXQR | CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC AND 2.400 AMPERES LAMP DC AND 5.000 AMPERES RESISTIVE AC AND 5.000 AMPERES INDUCTIVE AC AND 1.500 AMPERES LAMP AC |
| TEST | TEST DATA DOCUMENT | 81349-MIL-S-22885 SPECIFICATION |
| TTQY | TERMINAL TYPE AND QUANTITY | 6 TURRET |
| ZZZK | SPECIFICATION/STANDARD DATA | 81349-MIL-S-22885/11 GOVERNMENT SPECIFICATION |
